FT-70D

C4FM (System Fusion) with the FT-70D

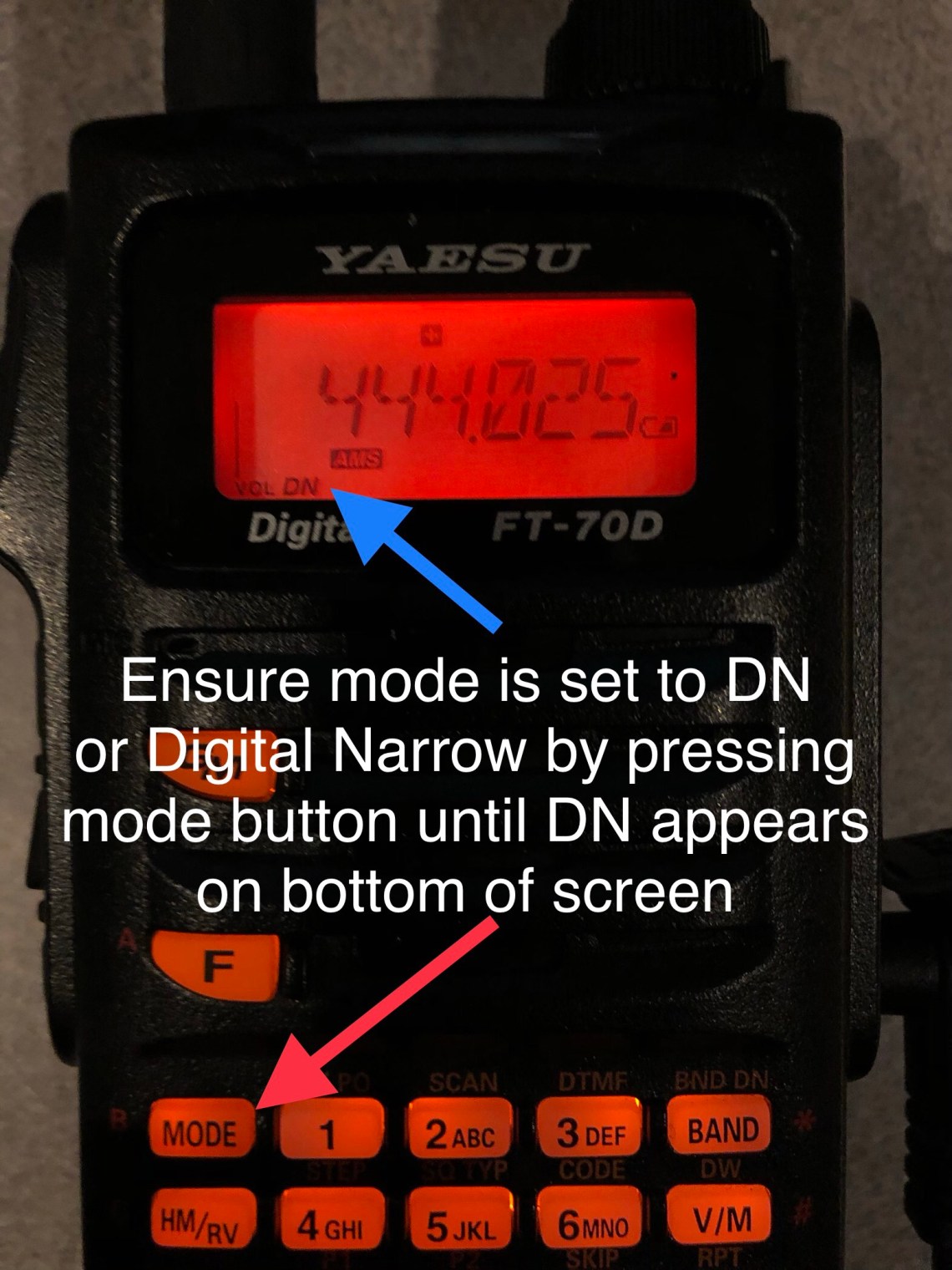

Fusion can be linked to rooms through direct input or dashboard, however up until recently the FT-70 did not support direct input. Programming is very simple however, be sure that your callsign is programmed into the radio, set the frequency for the Hotspot in your memory as a simplex frequency, and set the mode to digital. Write the memory, and you’re good to go! For the most part that is, from the Admin page on the Pi-Star dashboard you can change the room you’re linked to, and find out what room is which assigned number. When you know the corresponding numbers, you can program those into your radio, or directly input them to link to those rooms. If anybody has more information on programming radios for Hotspot use with C4FM, please feel free to comment.

Write it to memory by pressing F followed by V/M, press it again and type out what you’d like to name the channel, and press again to write, and you’re on the air on the Hotspot with Fusion!
