Pi-Star

The first thing that we’re going to need to do before all else is insert the SD card that comes with the Board into the computer – this comes preloaded with the Pi-Star image which makes this easy. From there we can get you set up for wireless Internet connectivity. The Raspberry Pi (any model after the original) has built-in Wi-Fi, so what you need to know is your Wi-Fi’s SSID, or display name, and your password. Once you have that, we’re going to head over to https://www.pistar.uk and the website will look as it does below:

From here, we’re going to select the option in the left-hand column that says Pi-Star tools, and that will give you a drop-down menu, select Wi-Fi builder

It will bring you to the screen below – it provides good instructions on what to do from here. You enter your Wifi information in the circled area, and it will generate a WiFi configuration file that we will the drag and drop on to our Pi-Star memory card, and get the device up and running!

Let’s locate the file that we’ve created (should be in your downloads folder), we’ll drag and drop that into the SD Card that has our Pi-Star OS on it. For this piece simply follow the onscreen instructions, this is very well documented and easy to setup.

Once we’ve done that, let’s eject the card from the PC, insert it into our Raspberry Pi with our Zumspot board attached, and plug in the power! Be sure that you’re utilizing the Micro USB Port labeled for Power, if you’re using a Pi-Zero there are going to be two set right together – the outer one is the one meant for the 5v Power input. Wait about 30 seconds to a minute after plugging in, and then go to your PC/Tablet. If you’re utilizing a full computer, go to your internet browser and simply type http://pi-star however, if you’re utilizing an Android or iOS Device, go to your browser and type pi-star.local – after you click go/hit enter you’re going to be redirected to the “Dashboard”

From here, to begin setup, you’re going to go to the “Admin” button on the top row

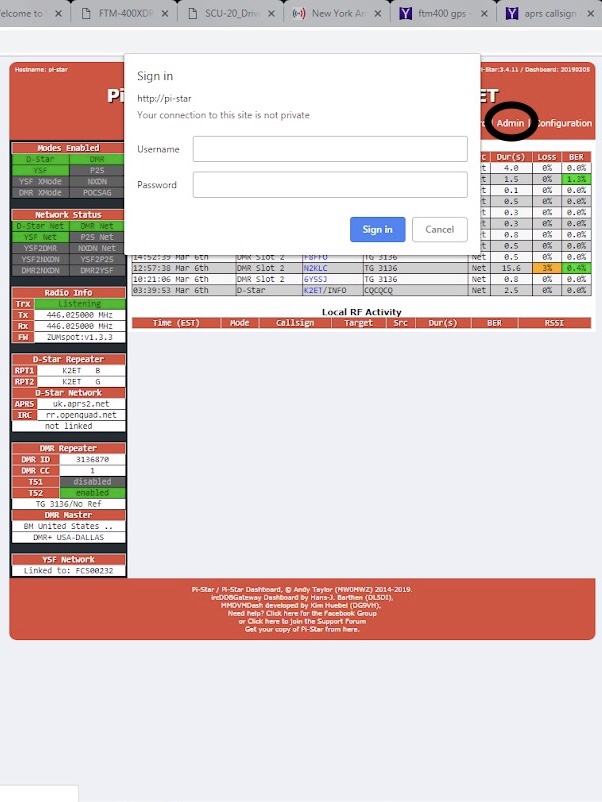

You’ll be prompted for a username and password as it shows above – the default is as follows:

Username: Pi-Star

Password: raspberry

The first thing you’ll want to do before setting at configurations is fetching an update for the latest Pi-Star software, this will have any types of stability patches, security updates, etc.., so make sure you click the “update” tab along the top bar. It’ll run its course and reboot.

Once we’ve done our update, go back to the “Admin” tab to get setup! It will bring you to the following page once you select Admin

This is where the confusion comes in – what type of software are we having Pi-Star act as? MMDVMHost or a D-Star Repeater? Well, this I guess is only confusing for those that are D-Star ONLY users, but even if you’re using it exclusively for D-Star, you need to select MMDVMHost.

Below you’ll see the MMDVMHost menu, and it’s here that you select what modes you’ll be using – I use YSF (Fusion/C4FM), D-Star, and DMR, so I have all of those selected as active as you’ll see, and then click apply changes.

Next, you’ll input your Callsign, as this is what the node will need to be assigned to be able to transmit over the gateway, and your CCS7 (or DMR) ID. This post is assuming that you have both registered your call, and gotten a CCS7/DMR ID, if you have not locate your closest D-Star Repeater and see if they’re setup for callsign registration, and go to http://www.dmr-marc.net/ to obtain your CCS7 number. After that you’ll pick a frequency – BE SURE YOU’RE IN AN OFF SECTION OF THE BAND! Last thing you want to do is be in the middle of the satellite downlinks or something, and mess with someone’s Sat. contact. If you’re interested in utilizing DPRS to transmit your location with each transmission, as well as mark the location of your hotspot, you’ll enter the latitude, and longitude of your hotspot, and the location data it asks for below. In order for it to communicate effectively with the Pi, as well as to identify what you’re using over the gateway, select the drop-down menu for “radio/modem type,” and select your corresponding hotspot setup (as you’ll see mine is the Zumspot/Pi-Zero).

Another thing to note in the photo below is that each mode is already configured. When you check the various boxes for the particular modes after your information is in, there isn’t a whole lot else to be done. With DMR, specify that you’d like to utilize the gateway, and enable the brandmeister network, and you’re pretty much good to go. For D-Star you can choose a default reflector to link to on startup if you’d like, or if you don’t want to have it automatically link, just leave it where it’ll default to – should say REF001A and the manual box will be checked, meaning you have to tell it to link to the reflector. With Fusion, you just select a room to link to, and you’re done.

Click Apply Changes, and now, we’re ready to use it! When you save your settings, it should automatically reboot, you’ll lose your connection to the device for about 30 seconds to a minute, and then you’ll be back up and running, and ready to go! Now, it’s time to move on to the radio side..
